HO model available now.
SC-01 272014 47' Steel Horse Car
In yester-year horses for farm, work, consumption and racing glided between destinations over rail. There were 2 service levels offered; fast premium service on passenger trains for valuable race and show horses or slower regular freight schedules. Race horses were delivered directly to race track sidings for loading and off-loading.
The CPR had 2 series of freight horse cars for general movement of stock. Fifteen wood frame truss-rod cars numbered 257983-257997 built between 1910 and 1913 and fifteen steel cars numbered 258000-258014 in 1928 originally fitted with K-brake and stem winder. The horse car series were renumbered to the 272000 series in 1948 to make way for new steel box cars. The steel cars renumbered 272014-272028. Some cars were refitted fitted with AB bake and power winder around 1950.
The steel cars had a surprising long life. 272028 was shown in the 1970 and 1977 Equipment Data books (CS-39) in CP Rail scheme but, I'm not sure if it isn't a photo touch up. One car, 272019, survived on the roster to June 1985.
This kit is based on CPR general arrangement drawing G-76-C-159 Rev.A and over 40 photos generously provided by the CPHA and friends. I have submitted an article for CP Tracks with more photos and details on car history. I'll update the product page when the article is published. Other sources for photos would be John Riddell's Canadian Pacific Color Guide to Freight and Passenger Equipment Volume 1 and 2.
CPHA: Don Lewis Collection
CPHA: Don Lewis Collection

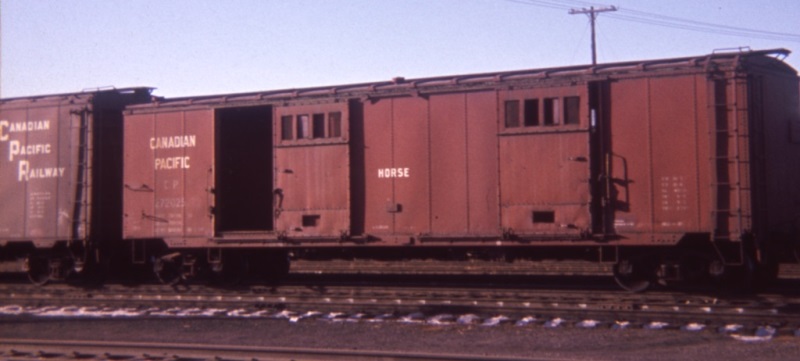

Car series history with photo confirmed road numbers
1928 - cars built with K-brake 1948 - series renumbered to 272014-272028 1950 - 15 cars in service with 7 cars listed with AB brake 1952 - 11 cars with AB and 4 with K brakes (known numbers: 272014 K-Brake, 272016 K-brake, 272019 AB, 272020 AB, 272025 AB, 272026 AB, 272027 AB, 272028 K) 1965 - 15 in service 1967 - 15 in service 1970 - 15 in service 1973 - 13 in service 1977 - 13 in service 1978 - 13 in service 1980 - 12 in service 1983 - 5 cars, 272014 was sold to Assiniboine Downs, Winnipeg MB that year and 272019, 272026, 272027 and 272024 in storage on site. 1984 - 4 cars, 272019 and three cars, 272024, 272026 and 272027 sold to Assiniboine Downs. 272014 still on site used as a storage shed. 1985 - 1 on roster, 272019, later sold to Assiniboine Downs, and all 5 cars scrapped that year.Two models available block and script lettering.
SC-01a As built with K-brakes. SC-01b rebuilt with AB brakes.The kit includes everything you need, details, metal ladders, steps and decals. You provide wire, trucks and couplers.
SC-01a Kit Instructions as of April 8, 2026.
SC-01b Kit Instructions as of April 8, 2026.
SC-01a - K brake
SC-01b - AB brake

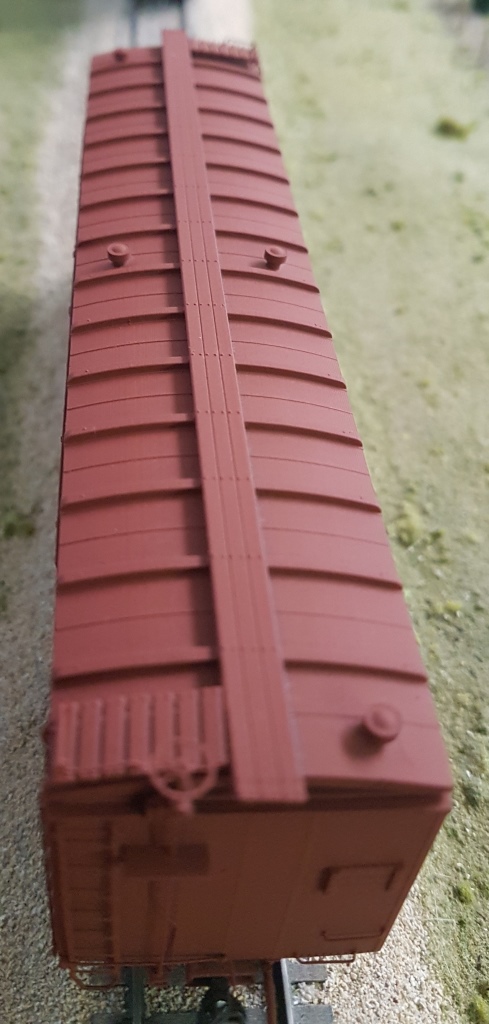

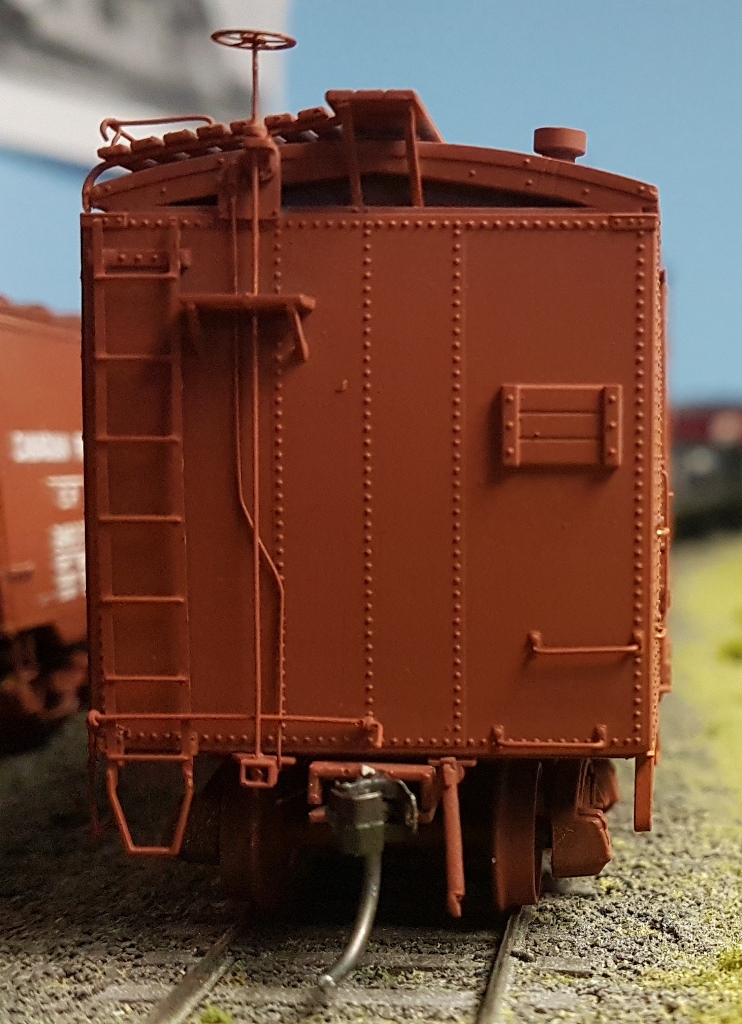

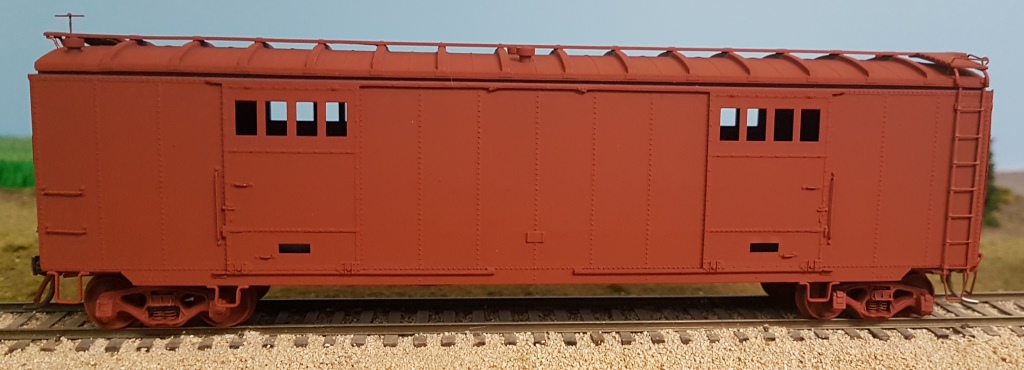

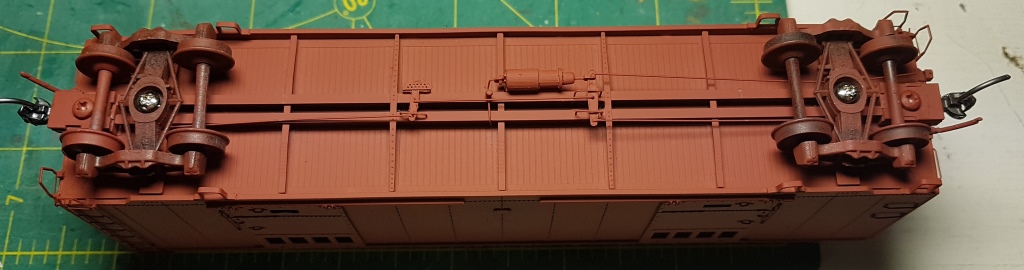

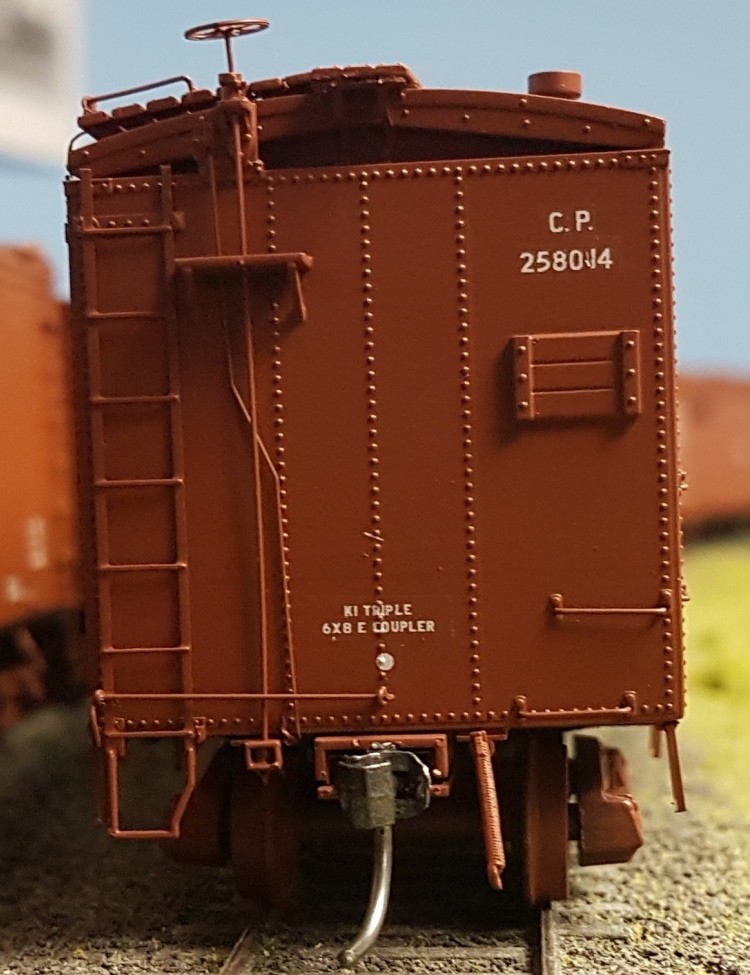

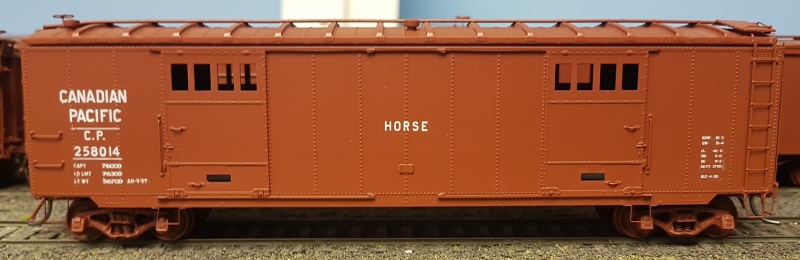

SC-01a - K brake - Test build 1
It's very close but needs small tweaks and proper etched stirup steps before it's perfect.

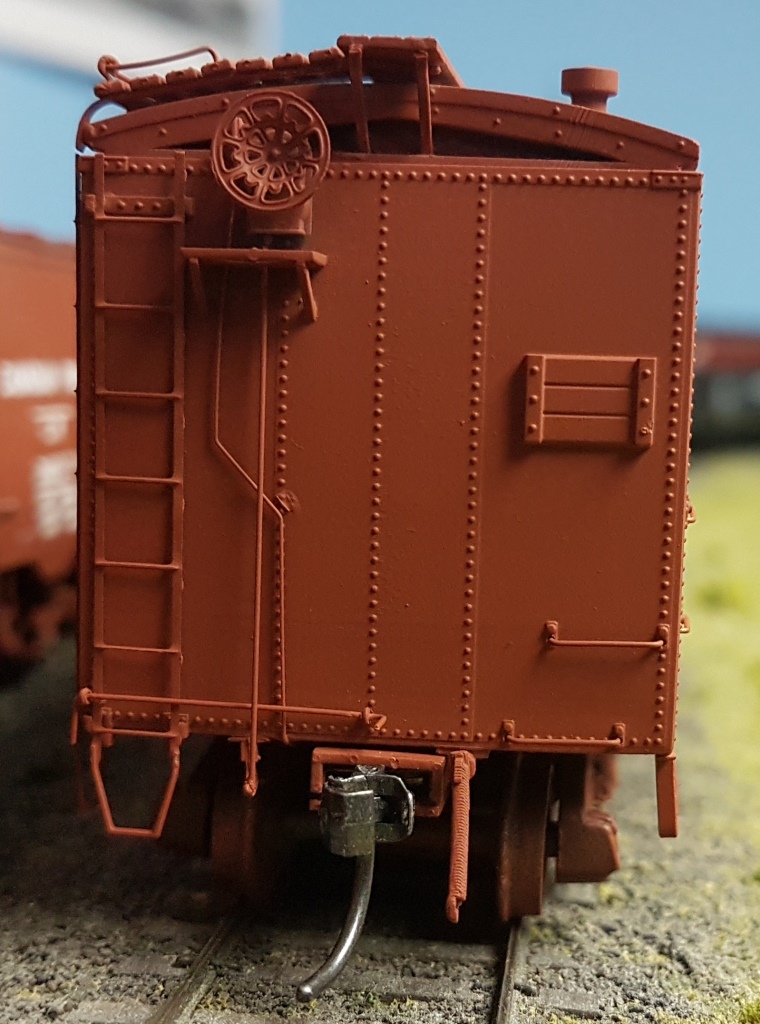

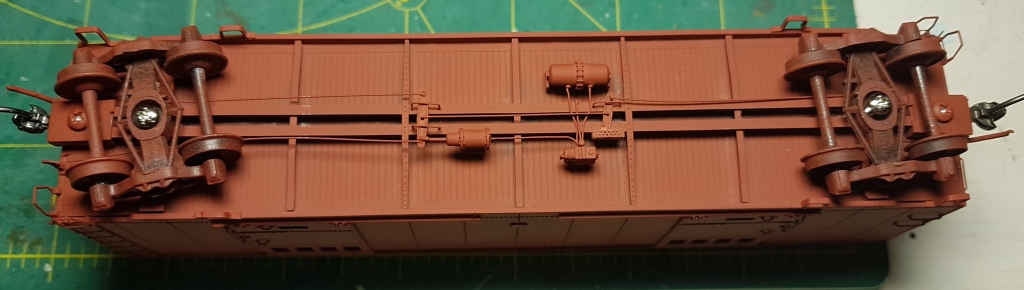

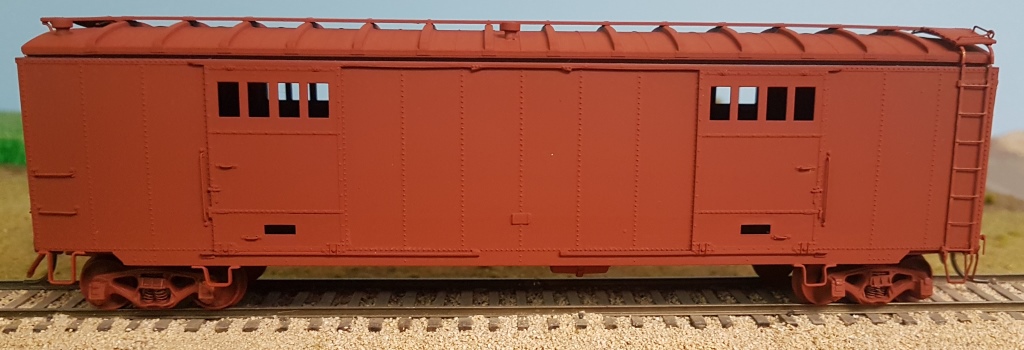

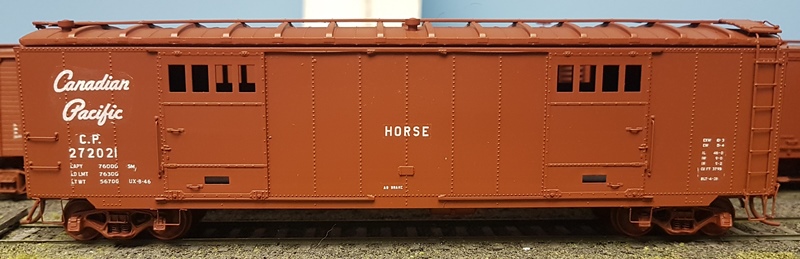

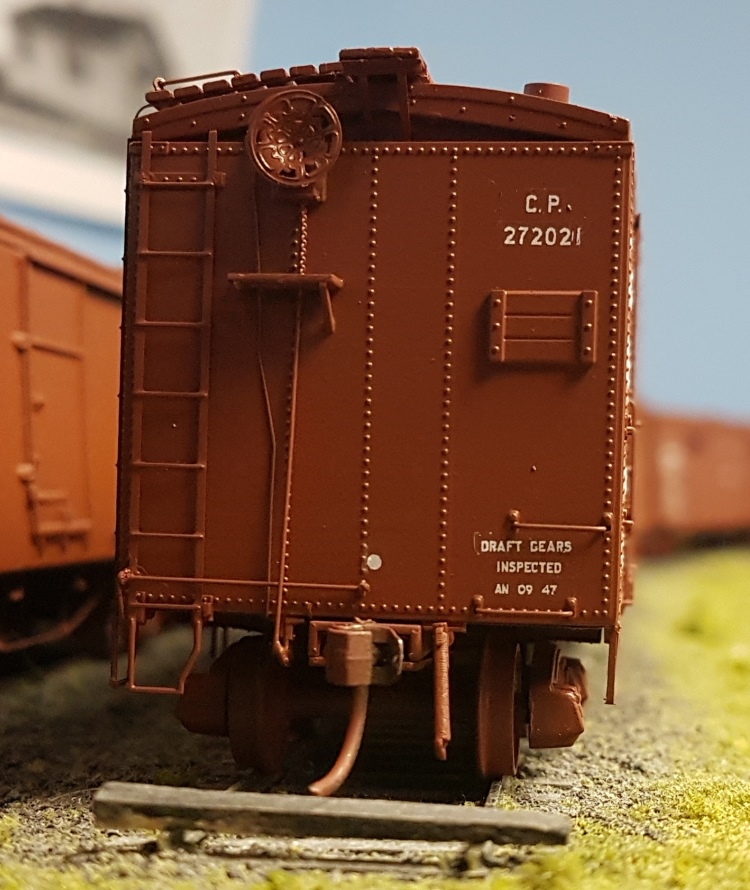

SC-01b - AB brake - Test build 1
